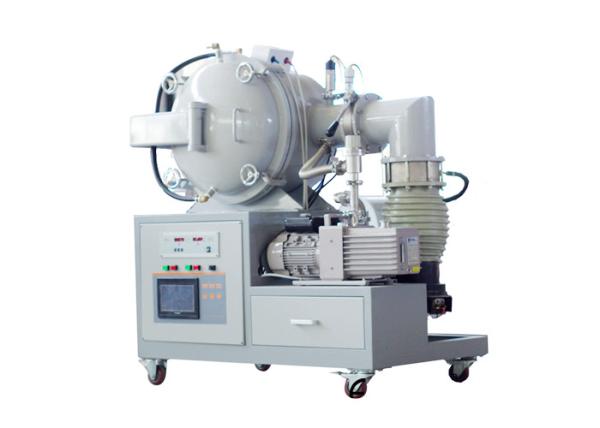

PLC 10Pa 324L 1200 Degree Vacuum Debinding Furnace

Name: PLC 10Pa 324L 1200 Degree Vacuum Debinding Furnace
Brand: Brother Furnace
Price: 1 USD

Brand Name : Brother Furnace

Model Number : BR-12VF/17VF / XD-12VF/17VF

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100 Sets per month

Delivery Time : 7-30 Working days

Packaging Details : Strong wooden box for global shipping

Vacuum : Up to 10 Pa (Two-stage rotary vane vacuum pump)

Max. Temperature : 1200℃

Capacity : 1 ~ 324L

Inert Gas : Designed with air inlet and exhaust port, it can be used for vacuum pumping or filling with inert gas

Vacuum Valve : Pneumatic vacuum valve, easy to operate

Vacuum leakage rate : Helium mass spectrometer leak detector vacuum pickup, ensure the vacuum leakage rate is lower than 0.67Pa/h.

Chamber : Alumina Ceramic fiber

Heating Element : Resistance Wire or MoSi2 heating element

Cooling : Double water-cooling, furnace shell surface temperature 50 ℃ or less

Alarm : Upper limit alarm, deviation alarm, automatic stop at the end of program operation, no man on duty

Control : 50 programmable temperature meter PID adjustment

MAX. HEATING RATE : 20°C /min

TEMPERATURE ACCURACY : ±1℃

TEMPERATURE UNIFORMITY : ±5℃

Type : vacuum debinding furnace

Contact Now

High Temperature Vacuum Debinding Furnace up to 1200 degree

This electric furnace is a very cost-effective vacuum furnace. Low price, simple operation, excellent vacuum effect, good temperature field uniformity.

It is used in high-temperature vacuum sintering, annealing, and tempering of ceramic materials, ceramic metal composites, refractory metals, and alloy materials.

Technical parameter:1200Type

Model	Max Temp.	Chamber size (WxHxD)	Heating element	Capacity (L)	Power (KW)	Vacuum
BR-12VF-1	1200	100100100	Resistance wire	1	1.2	10Pa
BR-12VF-5	1200	150150200	Resistance wire	4.5	3.5	10Pa
BR-12VF-12	1200	200200300	Resistance wire	12	5	10Pa
BR-12VF-36	1200	300300400	Resistance wire	36	12	10Pa
BR-12VF-64	1200	400400500	Resistance wire	80	18	10Pa
BR-12VF-125	1200	500500700	Resistance wire	175	30	10Pa
BR-12VF-216	1200	600600900	Resistance wire	324	50	10Pa

Standard Parts:

High-temperature gloves
Crucible clip
Operation Manual

Optional Parts:

Independent control cabinet
PLC automatic control system
Rapid furnace cooling system

1200℃ Max. High Temperature Vacuum Debinding Furnace
