36 - 512L Debinding Furnace , 1100 ℃ High Temperature Wax Burnout Furnace

Name: 36 512L Debinding Furnace 1100 High Temperature Wax Burnout Furnace
Brand: Brother Furnace
Price: 1 USD

Brand Name : Brother Furnace

Model Number : BR-TZL / XD-TZL

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 Sets per month

Delivery Time : 7-21 Working days

Packaging Details : Strong wooden box for global shipping

Max. Temperature : 1100℃

Capacity : 36 ~ 512L

TEMPERATURE CONTROL : 50 Segments Programmable And PID Auto Control

Air system : Air entering system included

Preheating : Air preheating system included

Heating side : 5 Sides heating

MAX. HEATING RATE : 30°C /min

TEMPERATURE ACCURACY : ±1℃

TEMPERATURE UNIFORMITY : ±5℃

Application : wax burn out

Contact Now

1100℃ High Temperature Wax Burnout Furnace, 1100C Wax Burnout Box Furnace

Brother's 1100℃ High Temperature Wax Burnout Furnace, 1100C Wax Burnout Box Furnace is mainly used in the process of wax burnout. It can also be used for magnetic materials, ceramic chips, ferrites. Debinding and pre-burning process of magnetic sheets and other electronic components. The unique thermal field control technology ensures the uniformity of the temperature field and required for the two process stages of debinding and sintering.

Molybdenum-containing resistance wire, the maximum temperature is 1100℃.
To ensure the ideal temperature field uniformity, heating in 5 sides.
In order to speed up the discharge of exhaust gas and prevent the high concentration of hydrocarbons released from the rubber discharge with the danger of explosion. This electric furnace is designed with fresh air entering the system.
In order to prevent the unevenness of thermal field temperature fluctuation by fresh air, there is a design of the fresh air preheating system and the ceramic tube homogenization system, which can greatly improve the temperature uniformity.
The exhaust gas collected to collecting cover of the furnace top through the electric exhaust cover, and collect the cooled wax.

Standard Spares:

High-temperature gloves
Crucible clip
Operation Manual

Optional Spares:

Mullite multi-layer shelf.
Exhaust gas pyrolysis package to pyrolyze the irritating organic matter.

1100℃ High Temperature Wax Burnout Furnace Technical Parameter:

Model	Heating zone (mm)	Temp.	Power	Votage
BR-TZL-334	300300400	1100℃	12KW	380V
BR-TZL-555	500500500	1100℃	25KW	380V
BR-TZL-666	600600600	1100℃	36KW	380V
BR-TZL-888	800800800	1100℃	64KW	380V

Why Brother's 1100℃ High Temperature Wax Burnout Furnace?

Manufacturer with 10+ years' experience

Best quality
Customized design
Experienced workers
Big factory

Customers from more than 30 countries choose us

Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.

Best service, Fast response

Free design for special furnace
Free technical support for the lifetime
Free sample test

If you're interested in our 1100℃ High Temperature Wax Burnout Furnace, 1100C Wax Burnout Box Furnace, contact us now to get a quote!

Product Tags:

wax burnout furnace

high temperature box furnace

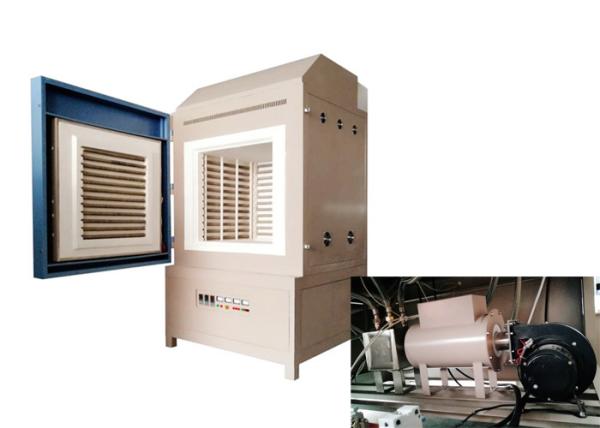

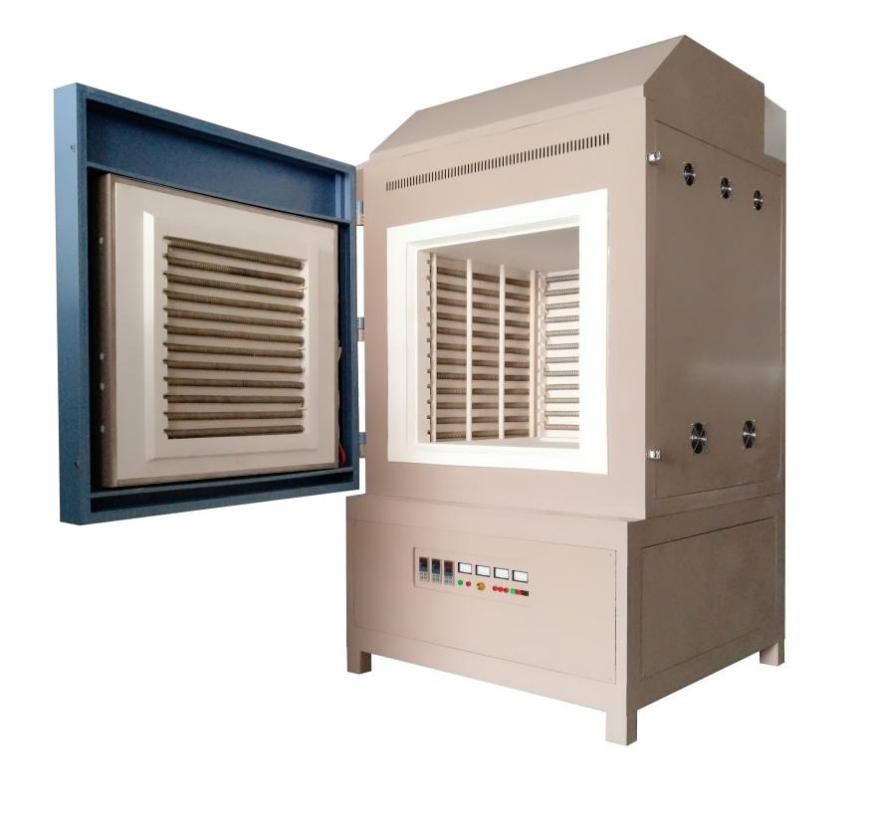

36 - 512L Debinding Furnace , 1100 ℃ High Temperature Wax Burnout Furnace Images
